Rack-mount Extended-Band Spectrum Analyzer
- Monitoring C Control (MCC) via Multiple Interfaces
- Up to 12 Inputs Available
- L-Band and Extended Frequency Band Options
Spectrum Analyzers
PRODUCT DATASHEET

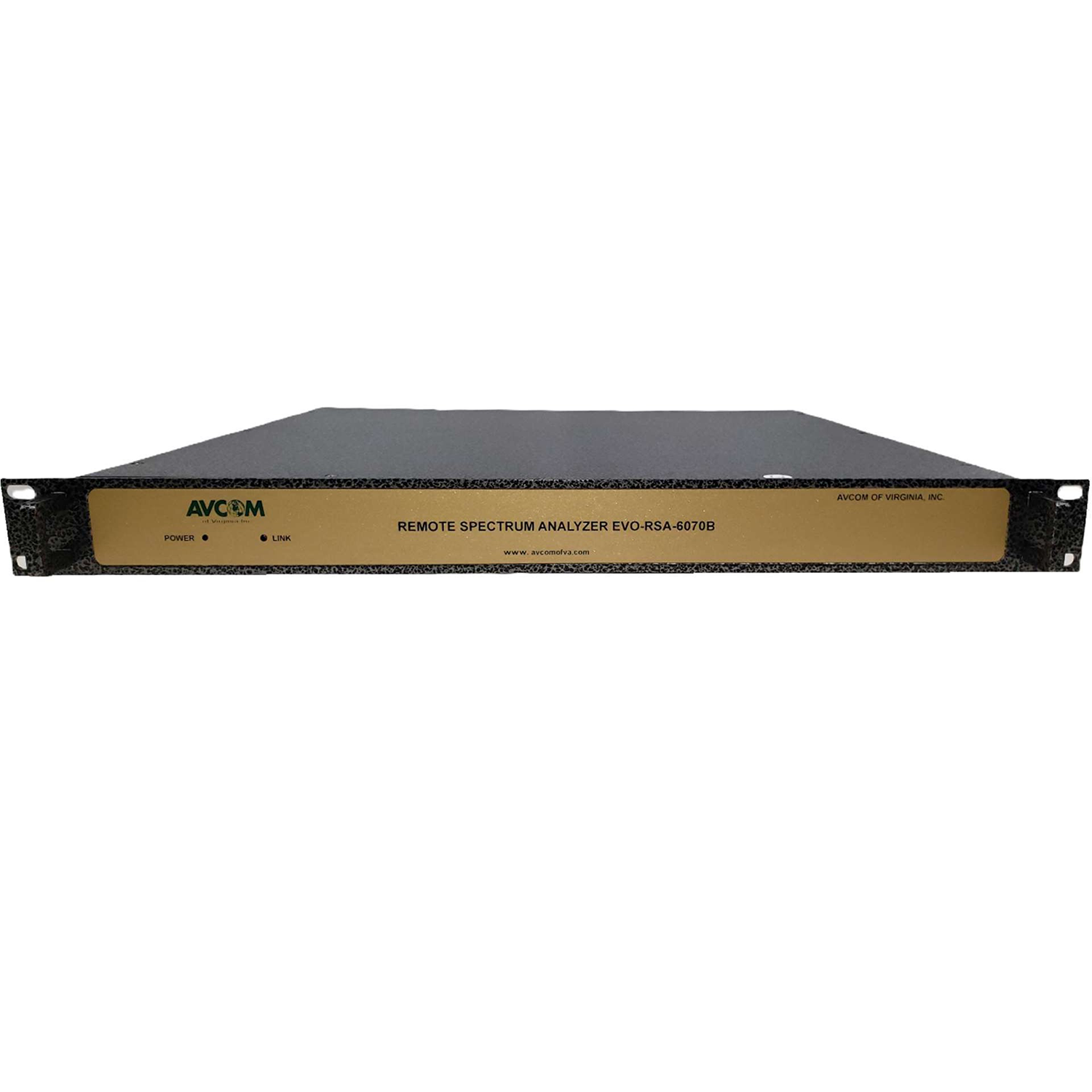

EVO-RSA (Rev B)
The EVO-RSA is a spectrum analyzer designed on a completely new platform to meet today’s system challenges. Avcom’s newest analyzer technology provides excellent performance by employing high-performance DSP, and FPGAs. This robust product features many capabilities to provide reliable operation and monitoring in rackmount applications.
The spectrum analyzer can be connected via ethernet, or USB, and supports communication with a WEB-GUI, POSIX-C API, and Avcom’ s EVO GUI. This wide range of options makes the unit ideal for integrating with custom MCC systems or easy setups using existing Avcom applications.
For more information and support, please contact salesrfq@avcomofva.com.
|
RF SPECIFICATIONS |
||||
| INPUT CONNECTORS: | SMA, BNC, F, and/or N | |||
| NOMINAL INPUT IMPEDANCE: | 50 Ω (SMA, BNC, N)
75 Ω (F) |
|||
| MAX DC INPUT VOLTAGE: | 25 V | |||
| Â
INPUT FREǪUENCY RANGE: |
MODEL | MIN (MHz) | MAX (MHz) | |
| 2290 | 900 | 2200 | ||
| 3040 | 400 | 3000 | ||
| 6070 | 70 | 6000 | ||
| MAX SPAN WIDTH: | 1300 MHz | |||
| MIN TUNING STEP SIZE: | 1 kHz | |||
| RESOLUTION BANDWIDTH: | 1 kHz, 3 kHz, 10 kHz, 30 kHz, 100 kHz, 300 kHz, 1 MHz | |||
| REFERENCE LEVELS: | -40 dBm, -30 dBm, -20 dBm, -10 dBm | |||
| MAXIMUM INPUT POWER LEVEL: | -10 dBm | |||
| RF SENSITIVITY (-40 REF LVL): | -100 dBm | |||
| SPUR FREE DYNAMIC RANGE (3kHz RBW): | 60 dB | |||
| NOISE FLOOR (-40 REF LVL, 3kHz RBW): | -100 dBm, -134 dB/Hz | |||
| NOISE FLOOR (-10 REF LVL, 3kHz RBW): | -70 dBm, -104 dB/Hz | |||
| ISOLATION BETWEEN INPUTS: | >40 dB typical | |||
| AMPLITUDE ACCURACY: | +/- 1 dB typical | |||
| FREǪUENCY ACCURACY: | +/- 1 kHz typical | |||
| Â
PHASE NOISE (2 GHz): |
OFFSET FREǪUENCY | PHASE NOISE (dBc/Hz) | ||
| 10 kHz | -100 | |||
| 100 kHz | -100 | |||
| 1 MHz | -109 | |||
|
COMMUNICATION INTERFACE |
|
| ETHERNET: | 10/100, DHCP or Static, RJ45 |
| USB: | 115200 8n1, USB-B |
|
M & C |
|||
| EVO GUI | POSIX-C API SBS2API | WEB-GUI | |
| ETHERNET: | Yes | Yes | Yes |
| USB: | Yes | Yes | N/A |
|
POWER |
|
| CONNECTOR: | Power Barrel Connector Jack |
| POWER SUPPLY: | 15 VDC, 0.5A |
|
PHYSICAL |
|
| Â
DIMENSIONS: |
1 RU,
19 in. x 18.13 in. x 1.72 in. 48.26 cm x 46.04 cm x 4.37 cm |
| WEIGHT: | 7.2 lbs, 3.27 kg |
|
ENVIRONMENTAL |
|
| OPERATING TEMPERATURE: | 0°C to 50°C |
| STORAGE TEMPERATURE: | -40°C to 85°C |
| HUMIDITY: | 0 to 95%, non-condensing |
| MAX OPERATING ALTITUDE: | 40,000 ft; 12,000 m |

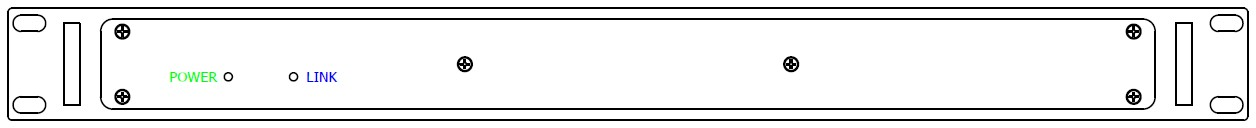

FRONT OF CHASSIS

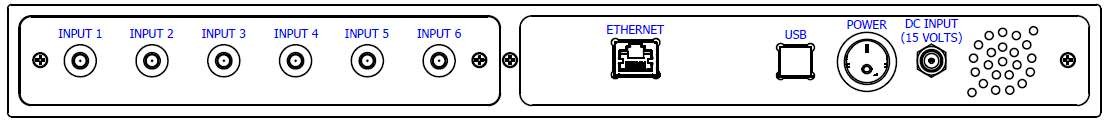

BACK OF CHASSIS
SMA CONNECTOR OPTIONS:
NOTE1: INPUTS ABOVE ORDERED NUMBER WILL NOT BE POPULATED
NOTE2: BNC, F AND N CONNECTORS ARE NOT SHOWN BUT FOLLOW A SIMILAR LAYOUT
2, 4, AND 6 INPUT MODELS:
8, 10, and 12 INPUT MODELS:
EVO-GUI Software
- EVO – GUI Software
- EVO – GUI User Manual
Release Notes
-
v1.5.2.0 (released 6/10/2025)
- Includes all fixes from v1.4.2.0
- Fix possible mismatched SA handles by making initialization thread-safe
- Add recovery for old EVO-RSA-6070A units causing crashing
- Fix bug on shape alarms not always loading correctly
- Update how presets are handled internally
- Fix bug with inverted LO offset in presets
- Fix bug with invalid SA options on change of connection
- Update sbs2api to v2.19.3.0
- Update Qt to v5.15.2
-
v1.4.2.0
- Includes all fixes from v1.2.4.0
- Add 100Hz BR update rate
- Add external inverted downconverter support
- Add inverted C-Band downconverter to default LO offset list
- Add slot 31 to default SA list
- Fix LO offset not loading correctly bug for BR config frequency
-
v1.2.4.0
- Includes all fixes from v1.2.3.0
- Update sbs2api to v2.13.3.0 (add BR-MOD-1-9-B USB support)
-
v1.2.3.0
- Includes all fixes from v1.1.6.0
- Fix spectrum mode support on old SBS2 units that did not properly support AVCOM_SBS_QueryFeature
- Fix RBW selection in BR preview mode to make sure RBW is valid
- Update measured frequency to fix corrected sbs2api unit error
- Improve graph utilization by getting unit-specified dynamic range using AVCOM_SA_GetDynamicRange
- Fix reconnect bug when using quick connect
- Fix bug when input was unable to be set
- Fix bug on set input for SBS1 products with different reflvls
- Update sbs1api to v1.8.3.0
- Update sbs2api to v2.10.3.0
- Update aovhpbasic to v1.3.3.0
-
v1.1.6.0
- Includes all fixes from v1.0.3.0
- Add HW and BOM version to analyzer info screen
- Add Linux build options
- Update default demo slot names
- Change default trace color to yellow
- Remove unused help buttons
- Fix dB and dBm typos
- Increase max graph range to 30dBm
- Add an optional advanced feature menu and full support for sweep optimization within the new menu
- Update sbs2api to v2.8.4
- Use AVCOM_BR_GetLatestData over AVCOM_BR_GetLastSweep if BR supports it
- Add support for changing network settings over USB
- Add search on all network adapters options to fix most common network search problems
-
v1.0.3.0
- Initial v1.0 Release
EVO-GUI (Graphical User Interface)
After installing and running the GUI software, click on the
